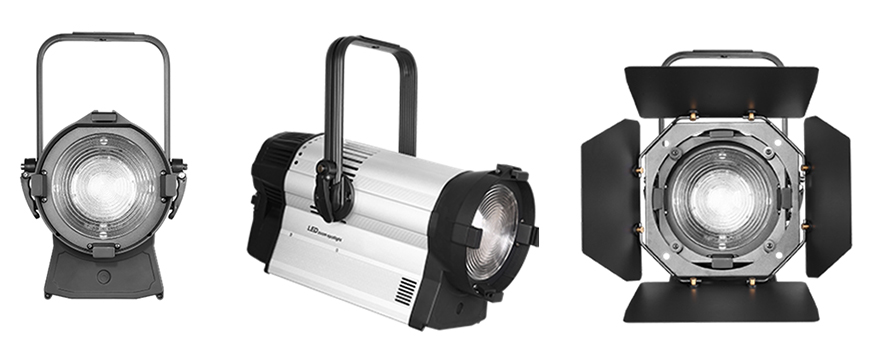

LED RGBW film and television spotlight

Rated voltage: AC100-240V/50-60Hz

Rated power: 220W

Light source: A modular LED light source composed of 24 5050 RGBW LEDs, with a single 5050 light source power

(Red 3W, Green 3W, Blue 3W, Warm White 8W)

Light source output power: 2700-10000K (180-200W), single red (55W), single green (90W), single blue (90W)

Light source lifespan: 50000 to 100000 hours

Color temperature: 2700-10000K adjustable (within 2700K ± 50, 3200K ± 100, 5600K ± 150)

Explicit index: average ≥ 93, TLCI average ≥ 91

Colors: Red, green, blue, and warm white. The lamp beads can be mixed into various colors through control and adjustment

Product output luminous flux: 2700K/3160 lm, 3200K/3120 lm, 5600K/3180 lm, 10000K/3060 lm, single red 430 lm, single green/910 lm, single blue/260 lm

Light angle: adjustable from 18 to 65 degrees;

Control signal: DMA signal

DMA Channel: Two channel modes, 4-channel and 9-channel, are available for selection

Control mode: DMA signal control or manual button control

Dimming: Smooth linear dimming with no jitter for 16 bits or more, no delay for dimming, and a dimming frequency of 20K or more

Focusing method: electronic focusing

Cooling fan: Customized adjustable speed intelligent fan according to the characteristics of the product. The fan speed (sound) can be adjusted intelligently according to the power size of the product, and the fan does not rotate when the dimming ＆#118alue is within the range of 0-99.

Power variation color temperature error: average positive and negative not exceeding 3%

Temperature change color temperature error: average positive and negative not exceeding 3%

Working environment temperature: -25 ℃ to 40 ℃;

Protection level: IP20

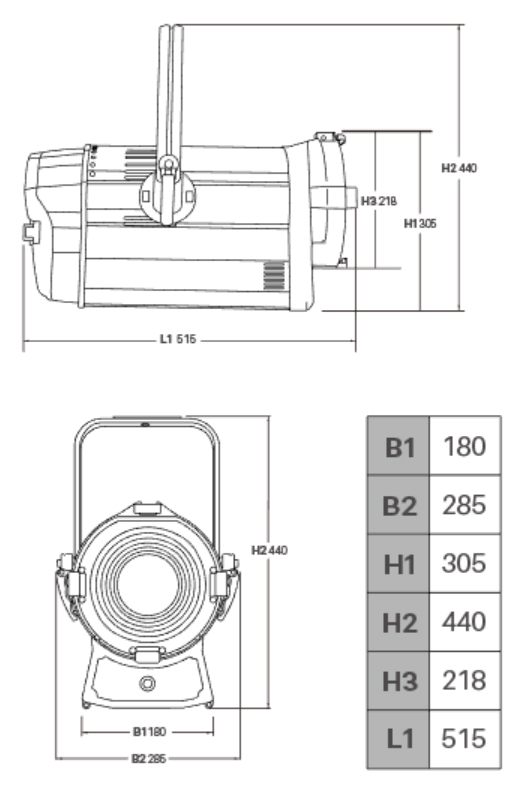

Internal dimensions: 56X28.5X28.5cm;

Packaging size: 67X34.5X33.5cm

Net weight: 10.2kg (lamp: 9.4kg, canopy: 0.8kg)

Gross weight: 12.5kg
