Film and television lighting

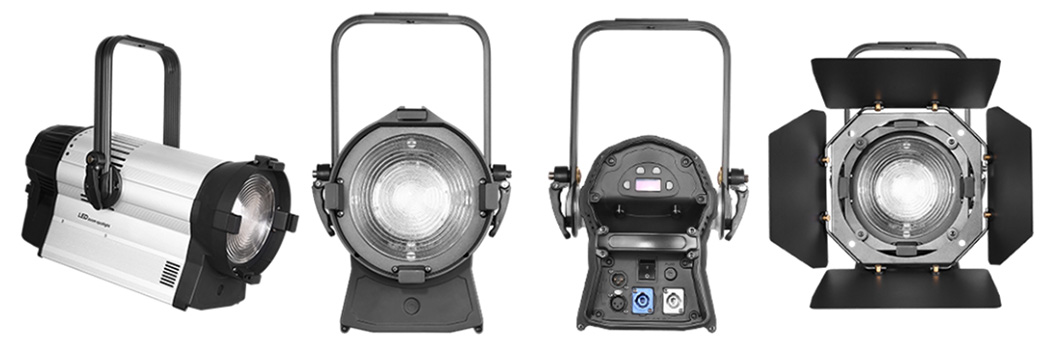

LED dual color temperature film and television spotlight
Parameters

LED dual color temperature film and television spotlight (Fresnel focusing)

Rated voltage: AC100-240V/50-60Hz

Rated power: 220W

Light source: A modular LED light source consisting of 24 5050 LEDs (warm white 3200K+normal white 5600K) is used, with a single 5050 LED light source power (warm white 3200K 10W, normal white 5600K 10W)

Light source output power: Warm white 3200K/200W, True white 5600K/200W

Light source lifespan: 50000 to 100000 hours

Color temperature: 3200-5600K adjustable

Explicit index: ≥ 93, TLCI ≥ 91

Product output luminous flux: 3200K/4050 lm, 5600K/4260 lm

Light angle: adjustable from 18 to 65 degrees

Control signal: DMA signal

DMA channel: 4 channels

Control mode: DMA signal control or manual button control

Dimming: Smooth linear dimming with no jitter for 16 bits or more, no delay for dimming, and a dimming frequency of 20K or more

Focusing method: electronic focusing

Cooling fan: Customized adjustable speed intelligent fan according to the characteristics of the product, the fan speed (sound) can be adjusted intelligently according to the power size of the product

Working environment temperature: -25 ℃ to 40 ℃

Protection level: IP20

Internal dimensions: 56X28.5X28.5cm

Packaging size: 67X34.5X33.5cm

Net weight: 10.2kg (lamp: 9.4kg, canopy: 0.8kg)

Gross weight: 12.5kg
