The optics, structure, and software of this product are all designed by top international engineers.

The light source adopts imported LED light source, which has a long lifespan and high light efficiency.

The heat dissipation of the light source adopts a heat sink specially processed from pure aluminum, with a thermal conductivity 2.5 times that of ordinary aluminum, and uses an ultra quiet fan.

The lamp body is made of aluminum alloy material, making installation and operation light and convenient.

This product meets the needs of different places, such as color temperature, display index, brightness, focusing method, control method, and lamp body color, and can be generated according to customer needs.

The input voltage of the product can be connected to multiple units in series, with a maximum of 8 units per group.

Rated voltage: AC100-240V/50-60Hz.

Rated power: 330W.

Light source: A modular LED light source composed of 84 3030 or 3535 white LED light sources (with a single light source power of 5W).

Light source output power: 300W.

Light source lifespan: 50000 to 100000 hours.

Color temperature: 5600K or 6500K.

Explicit indication: above 85.

Product output luminous flux: 16340 lm.

Light angle: 17 ° (changing the lens at the front can change the light angle and spot shape).

Control mode: According to customer requirements, there are two optional modes: potentiometer dimming and DMA signal dimming.

Dimming: Smooth linear dimming with no jitter at 16 bits or more, no delay for dimming, and a dimming frequency of 20K or more.

Cooling fan: Customized adjustable speed intelligent fan according to the characteristics of the product, the fan speed (sound) can be adjusted intelligently according to the power size of the product.

Working environment temperature: -25 ℃ to 40 ℃.

Protection level: IP20.

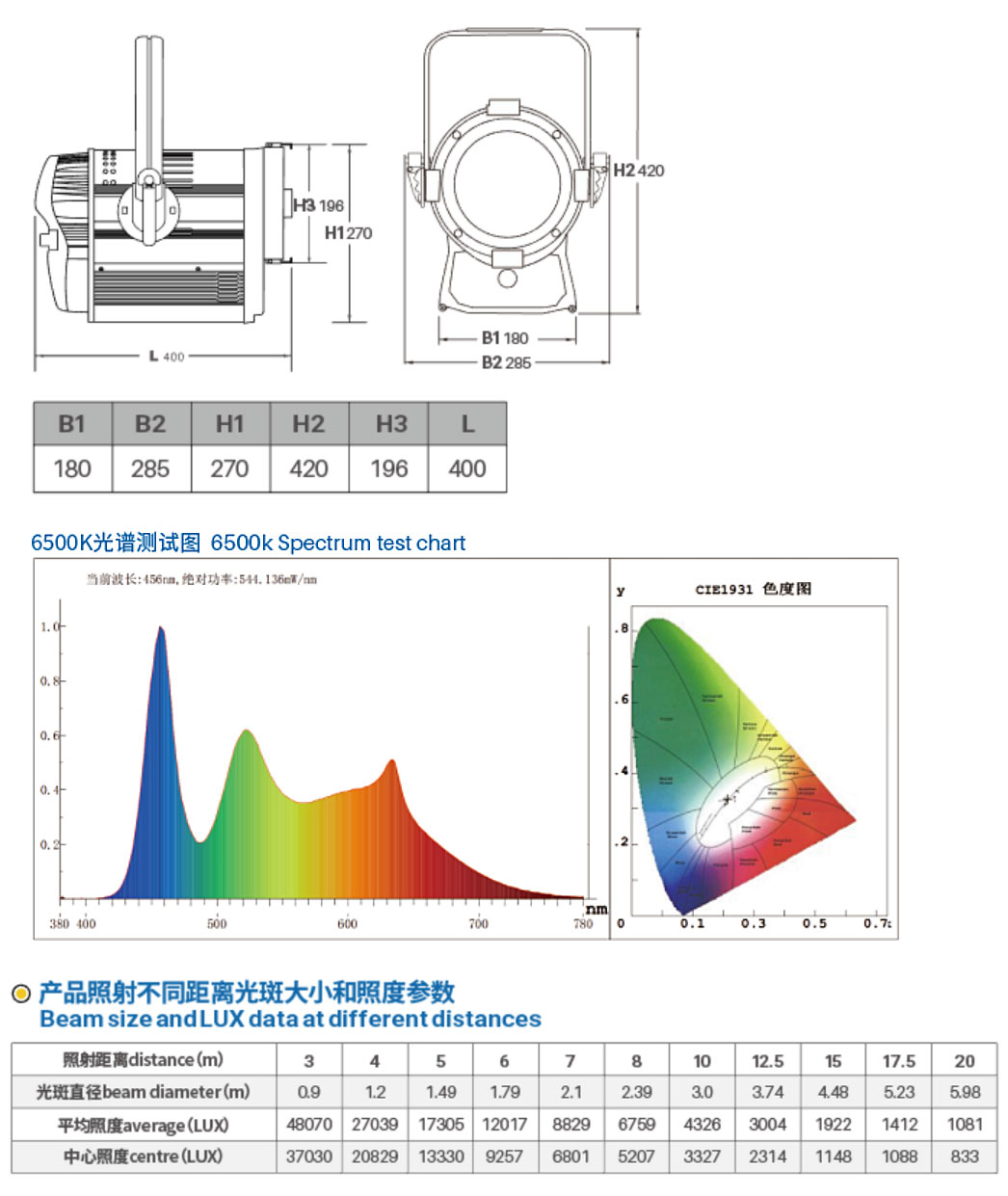

Internal dimensions: 43X28.5X27cm.

Packaging size: 53.5X34.5X33.5cm.

Net weight: 8.1kg (lamp: 7.3kg, canopy: 0.8kg).

Gross weight: 9.6Kg.
