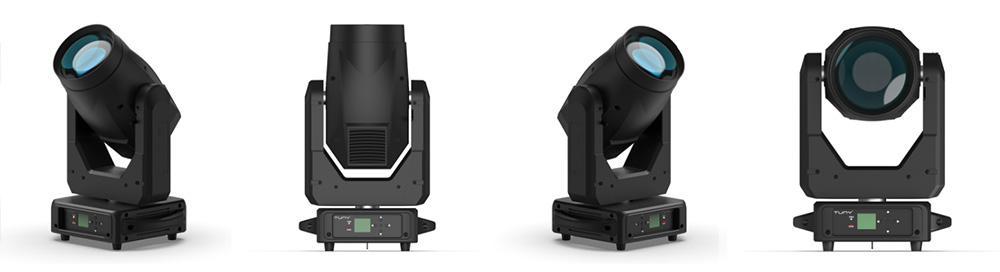

400 BK

Parameters

main features

·Output lens diameter: 160mm

·Electric focusing system

·1 color palette: 14 colors+white, rainbow effect

·1 fixed pattern plate: 14 patterns+white circles

·2 prism discs: 5 bi-directional rotating prisms; Octagonal prism,

Twenty four prisms, forty-eight prisms, six sided straight mirror arrangement * 2

·Atomization effect

·Excellent rainbow effect.

·0-100% smooth dimming.

·Multiple flicker speed effects.

technical specifications

·Light source: OSRAM 381 or customized 380W (2000 hours)

·Color temperature: 7800K

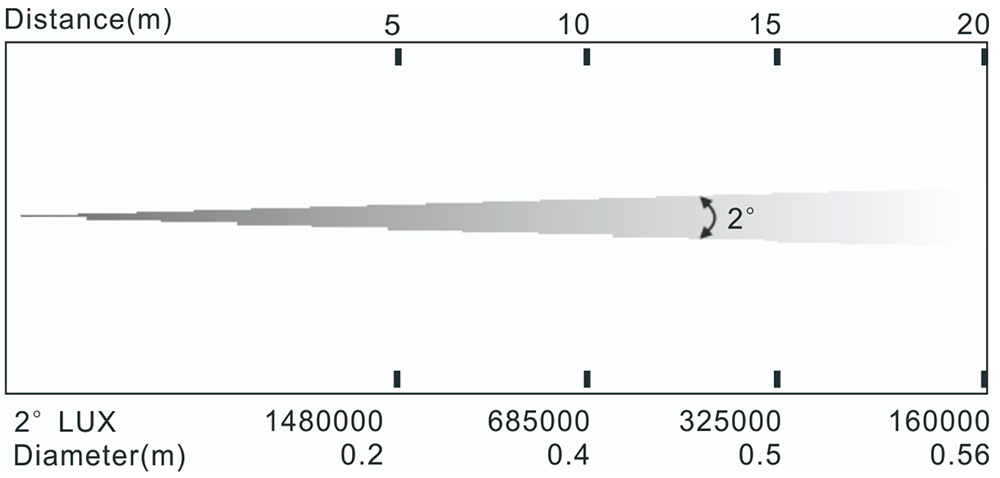

·Beam angle: 2 °

·Channel mode: 16CH

·Control protocol: DMX512, RDM

·X-axis/Y-axis: 540 °/270 °

·Precision: 16 bit precision scanning

·Correction: Automatic correction of X-axis/Y-axis position out of step

·Display: LCD display screen

·Signal input/output: Three core XLR socket

·Power socket: power connector input/output

·Protection level: IP20

Physical parameters

·Input power supply: 110-260V~50/60Hz

·Power: 500W

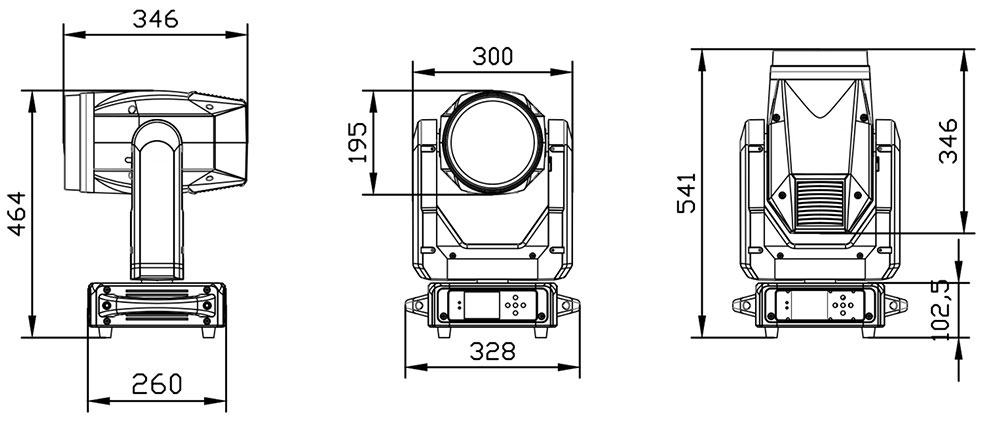

·Size: 328x260x541mm

·Carton size: 415x430x595mm

·Air box size: 610x330x690mm (1 pack of 2)

·Net weight: 16kg

·Gross weight: 19kg (including cardboard boxes, 1 pack, 1 standard)

52kg (including aviation box, 1 pack 2 standard)
