Mini 251 beam light

Parameters

main features

·Output lens diameter: 125mm.

·Electric focusing system.

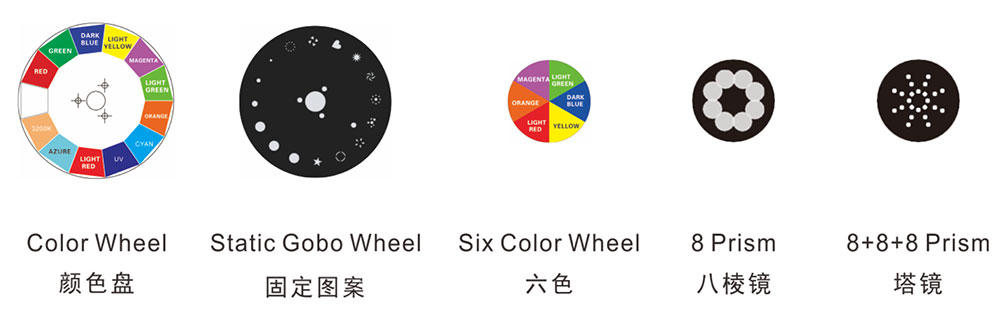

·1 color palette: 12 colors+white, rainbow effect.

·1 fixed pattern plate: 15 patterns+white circles.

·Prism: 1 fixed tower mirror/1 bi-directional rotating octaprism,

The tower mirror and octaprism rotate and overlap in both directions.

·The atomization effect and fixed tower mirror can be replaced with each other.

·Excellent rainbow effect.

·0-100% smooth dimming.

·Multiple flicker speed effects.

technical specifications

·Light source: PHILIPS 250W (3000 hours)

Or PHX250W/PHX230W (2000 hours)

·Color temperature: 7800K

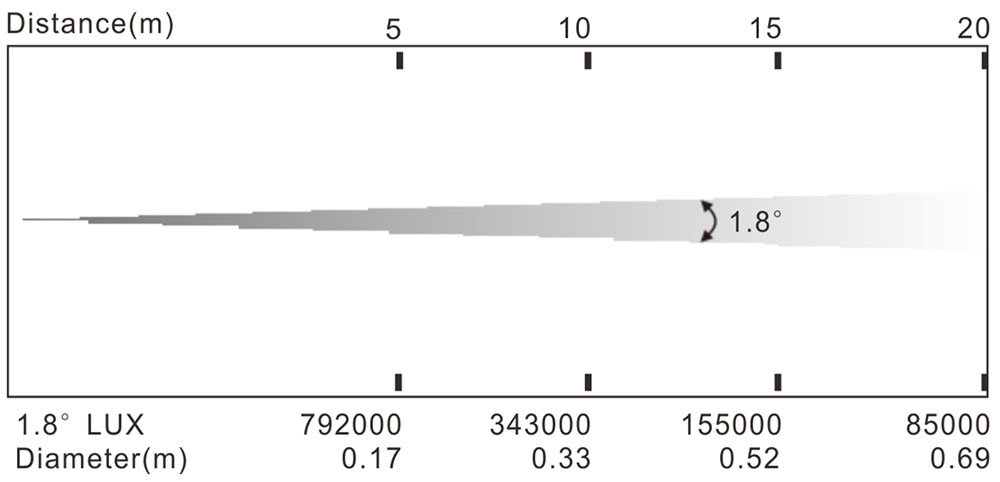

·Beam angle: 1.8 °

·Channel mode: 16CH

·Control protocol: DMX512, RDM

·X-axis/Y-axis: 540 °/270 °

·Precision: 16 bit precision scanning

·Correction: Automatic correction of X-axis/Y-axis position out of step

·Display: LCD display screen

·Signal input/output: Three core XLR socket

·Power socket: power connector input/output

·Protection level: IP20

Physical parameters

·Input power supply: 100-260V~50/60Hz

·Power: 365W

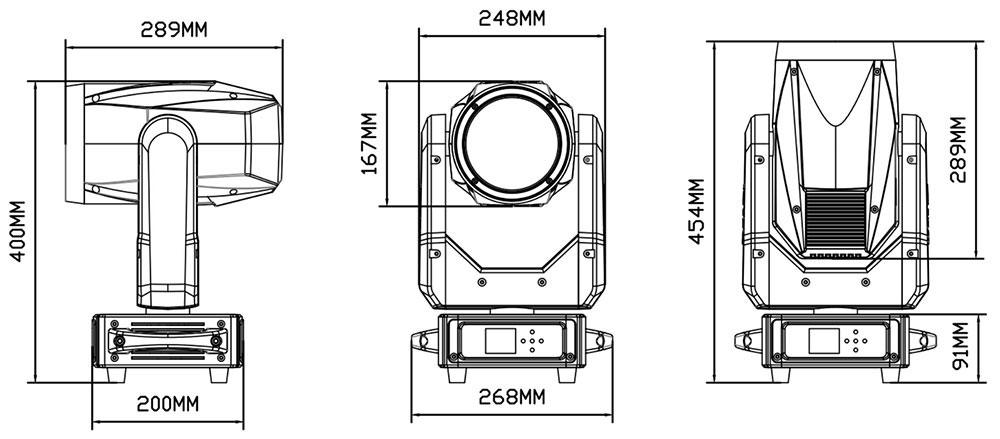

·Size: 268x220x454mm

·Carton size: 350x370x480mm

·Air box size: 490x310x600mm (1 pack of 2)

·Net weight: 8kg

·Gross weight: 10kg (including cardboard boxes, 1 pack, 1 standard)

30kg (including aviation box, 1 pack with 2 standard)
