LED XT1 BS Guangzhou Hongri Stage Lighting Equipment Co., Ltd

PRODUCTS

Professional Stage/Tour Performance

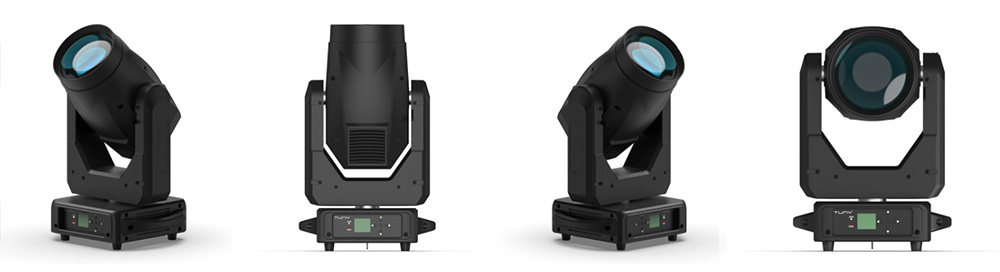

LED XT1 BS

Parameters

main features

·Output lens diameter: 125mm.

·Electric focusing system.

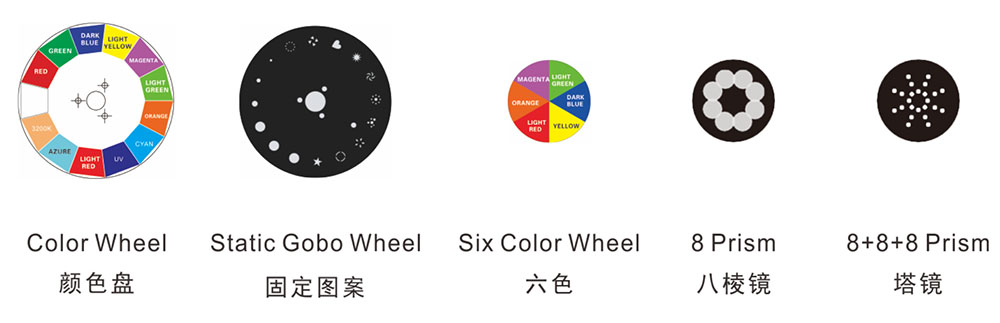

·1 color palette: 12 colors+white, rainbow effect.

·1 fixed pattern plate: 15 patterns+white circles.

·Prism: 1 bi-directional rotating octaprism.

·1 spherical magnifying glass.

·Excellent rainbow effect.

·0-100% smooth dimming.

·Multiple flicker speed effects.

·Optional configuration of head ring LED halo.

technical specifications

·Light source: module LED150W (20000 hours)

·Color temperature: 9800K

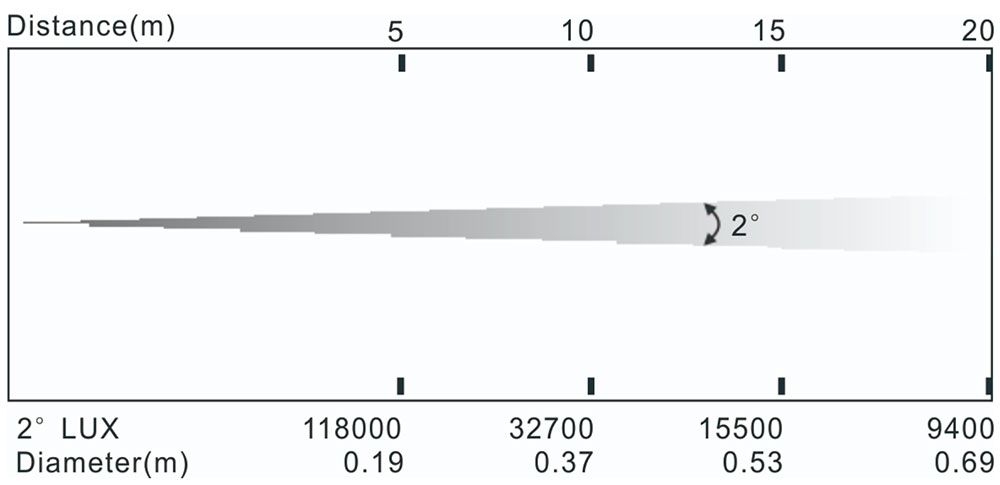

·Beam angle: 2 °

·Channel mode: 16CH

·Control protocol: DMX512, RDM

·X-axis/Y-axis: 540 °/270 °

·Precision: 16 bit precision scanning

·Correction: Automatic correction of X-axis/Y-axis position out of step

·Display: LCD display screen

·Signal input/output: Three core XLR socket

·Power socket: power connector input/output

·Protection level: IP20

Physical parameters

·Input power supply: 100-260V~50/60Hz

·Power: 220W

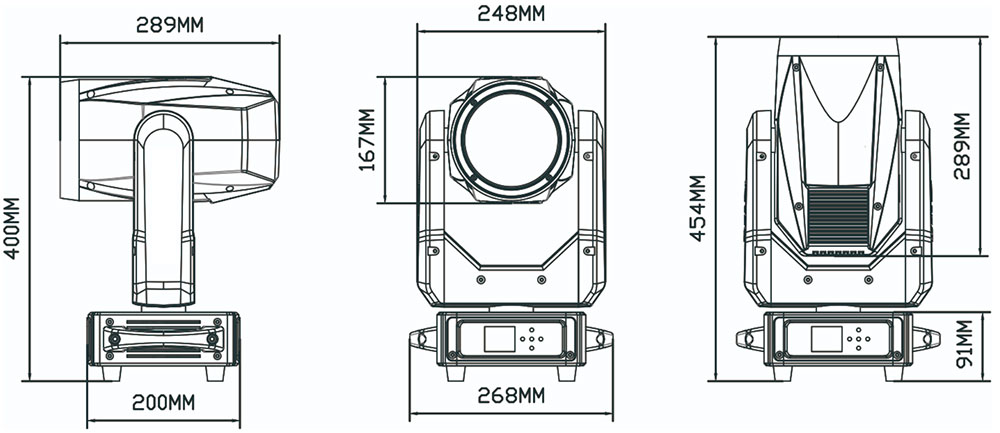

·Size: 268x220x454mm

·Carton size: 350x370x480mm

·Air box size: 490x310x600mm (1 pack of 2)

·Net weight: 8kg

·Gross weight: 10kg (including cardboard boxes, 1 pack, 1 standard)

30kg (including aviation box, 1 pack with 2 standard)
