Power supply: AC100-240V 50/60Hz

Light source: OSRAM 21R

Zoom range: 2.5 °~53 °

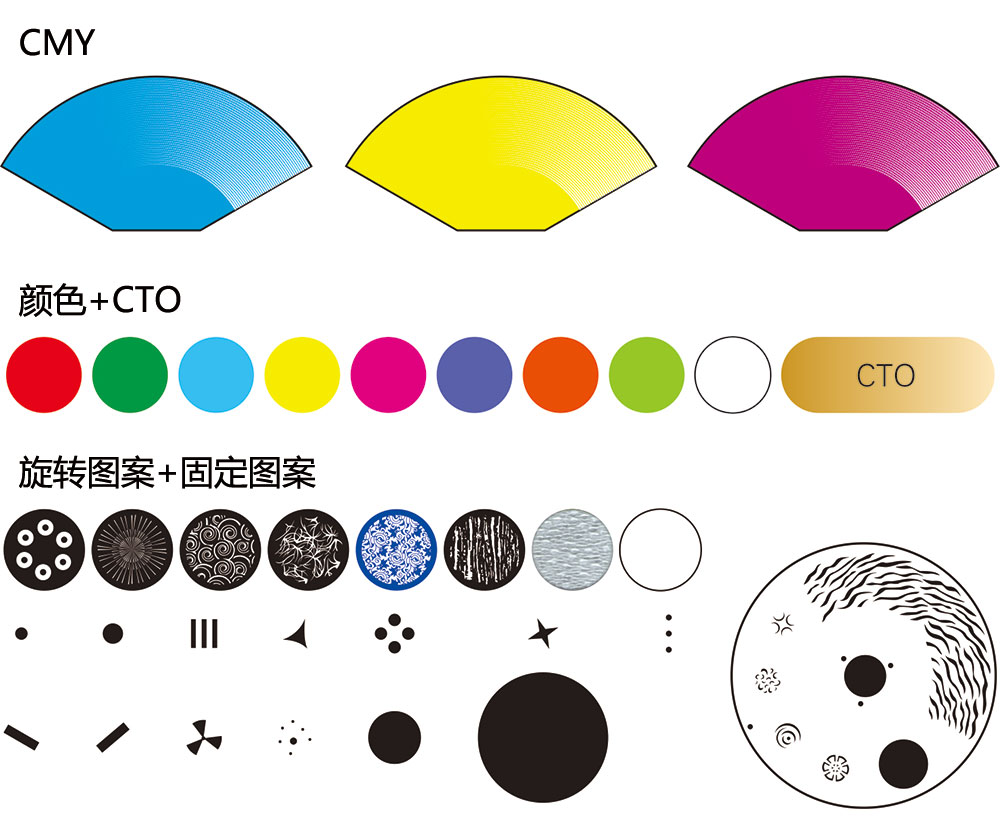

13 colors+white light; Can achieve color rainbow

1 rotating pattern disc with 7 pattern pieces and white light;

Can achieve self rotation, flowing water, and shaking effects; Pattern wheel can be positioned

1 fixed pattern plate with 13 patterns and white light

1 effect pattern plate with 5 patterns and white light

Independent atomization soft light effect; Dyeing range 6.8-65 degrees

Mechanical linear dimming 0-100%;

Fast flicker, multiple flicker mode selection, pulsating, asynchronous, synchronous, random slow medium fast;

Prism 1 spin octaprism can rotate in both directions

1 hexagonal prism, capable of bi-directional rotation

Double prisms can be stacked

Angle: Horizontal 540 °, accuracy 2.11 °/step, fine adjustment accuracy 0.008 °;

Vertical 270 °, accuracy 1.05 °/step, fine adjustment accuracy 0.004 °

Horizontal or vertical use of electro-optical reset system

17 (standard)/24 (extended) two channel control modes

Communication protocol: Standard DMX512 protocol and wireless DMX512 control.

Menu display: 16 million color 3.5-inch LCD touch screen with a resolution of 320 x 240; Both Chinese and English languages are available

Switch freely, the font can be automatically inverted 180 ° for display; Optional touch and button operation modes

Equipped with a built-in self charging buffer battery, allowing for menu editing in a dead state. When the light is turned off, the power automatically decreases, which is energy-saving and environmentally friendly.

Intelligent regulation of fans. Electronic sensing detection. DMA channel level monitoring.

XY axis three-phase motor drive

Query lamp information through LCD screen.

Size and weight

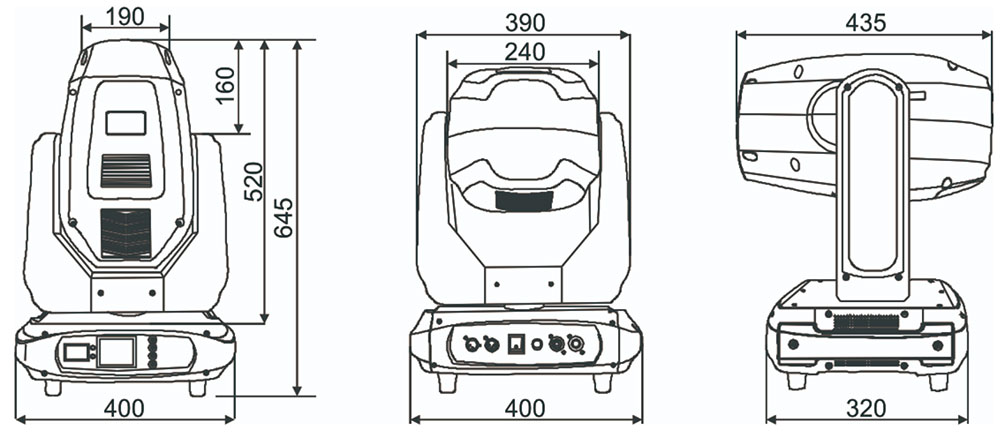

Product size: 424mm x 390mm x 622mm

Packaging size: 930mm x 500 mm x 840mm (aviation box)

Net weight: 22 kg

Gross weight: 88.4kg

Packaging method

One pack of two aviation boxes

Protection level: IP20
