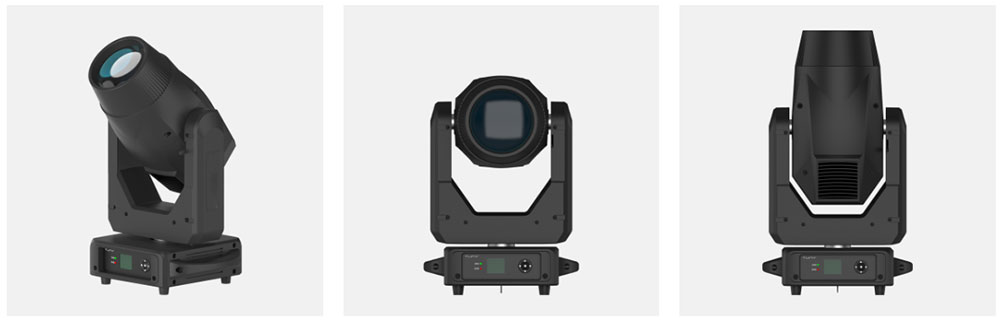

380BSW

Parameters

main features

·Output lens diameter: 138mm

·Electric linear focusing system

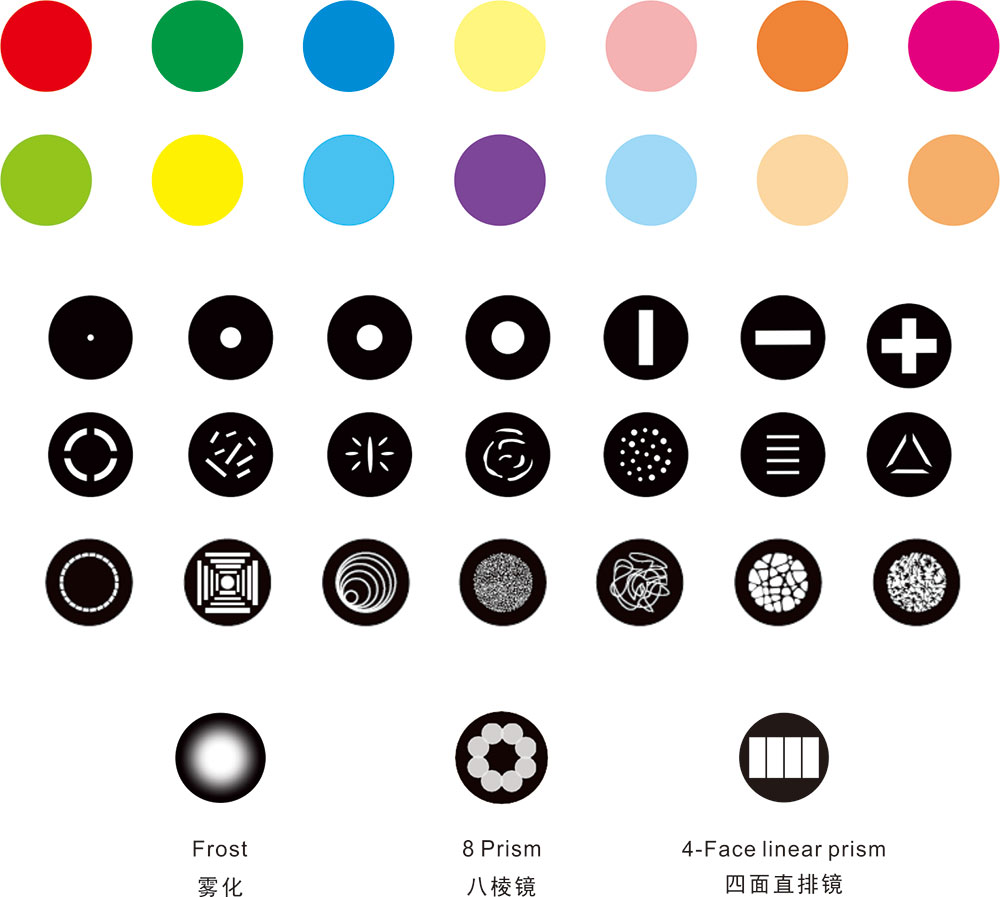

·1 color palette: 14 colors+white, rainbow effect

·1 fixed pattern plate: 14 patterns+white circles

·1 rotating pattern plate: 5 black+2 colored glass patterns+white circles

·Prism: 2 bi-directional rotating prisms; 1 4-sided straight mirror, 1 octaprism

·Atomization effect

·The saturation of the pattern is greater than 85%

·0-100% smooth dimming

·Multiple flicker speed effects

technical specifications

·Light source: PHILIPS 380W or customized 380W (2000 hours)

·Color temperature: 7800K

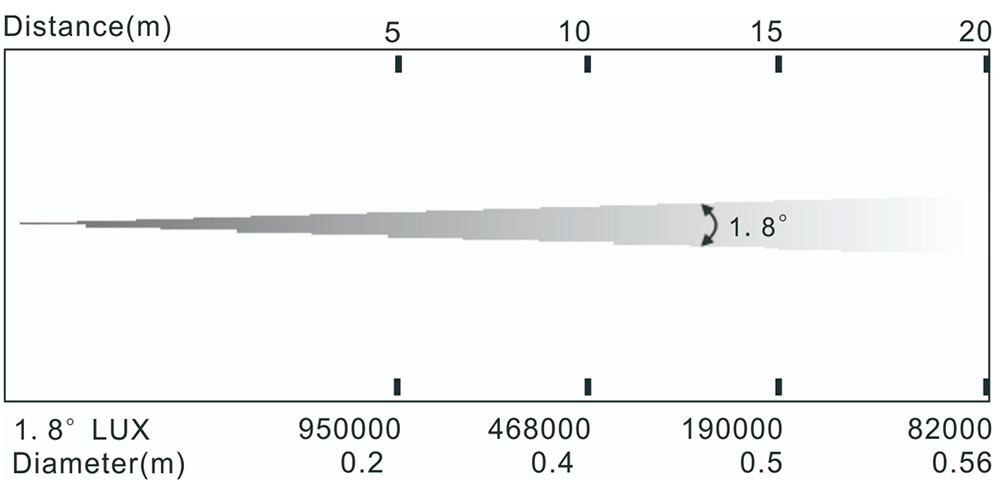

·Light angle: 1.8 ° -50 °

·Channel mode: 24CH

·Control protocol: DMX512, RDM

·X-axis/Y-axis: 540 °/270 °

·Precision: 16 bit precision scanning

·Correction: Automatic correction of X-axis/Y-axis position out of step

·Display: LCD display screen

·Signal input/output: Three core XLR socket

·Power socket: power connector input/output

·Protection level: IP20

Physical parameters

·Input power supply: 100-260V~50/60Hz

·Power: 500W

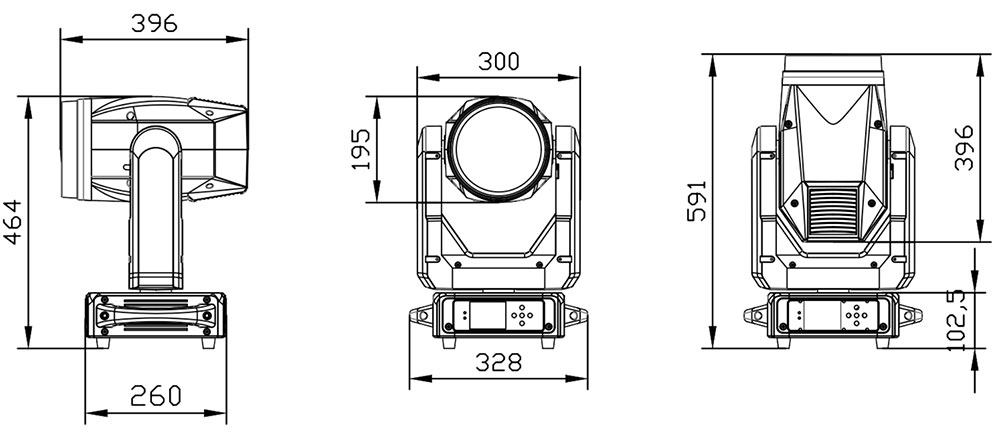

·Size: 328x260x591mm

·Carton size: 415x430x645mm

·Air box size: 610x330x740mm (1 pack of 2)

·Net weight: 17kg

·Gross weight: 20kg (including cardboard boxes, 1 pack, 1 standard)

53kg (including aviation box, 1 pack with 2 standard)
